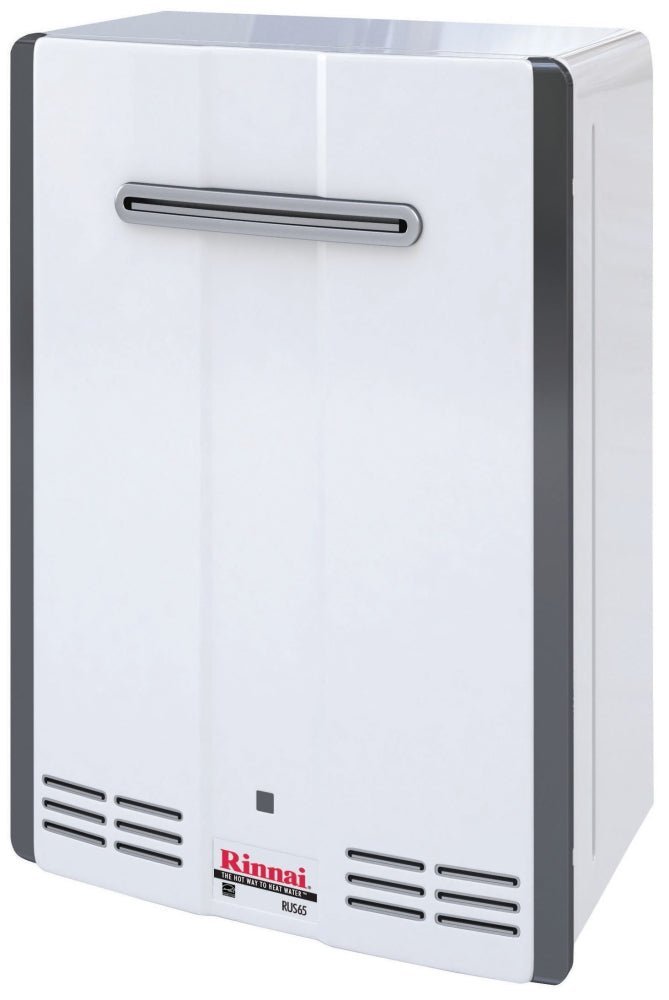

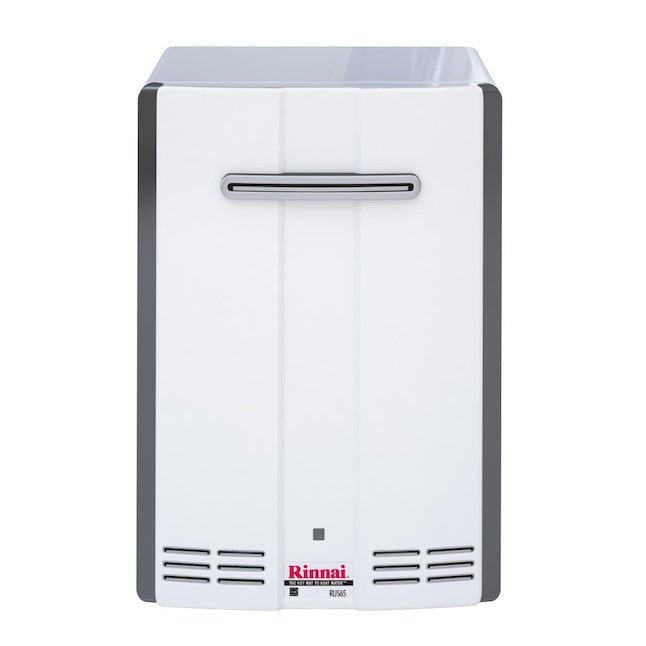

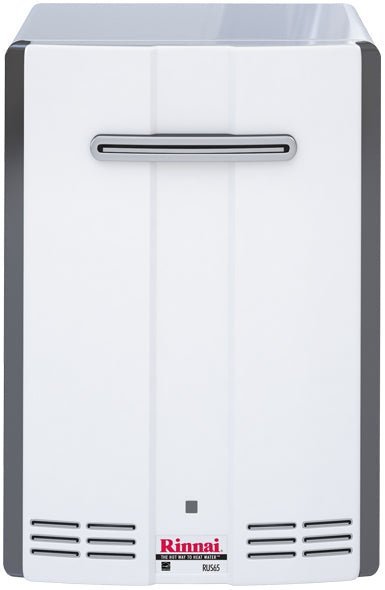

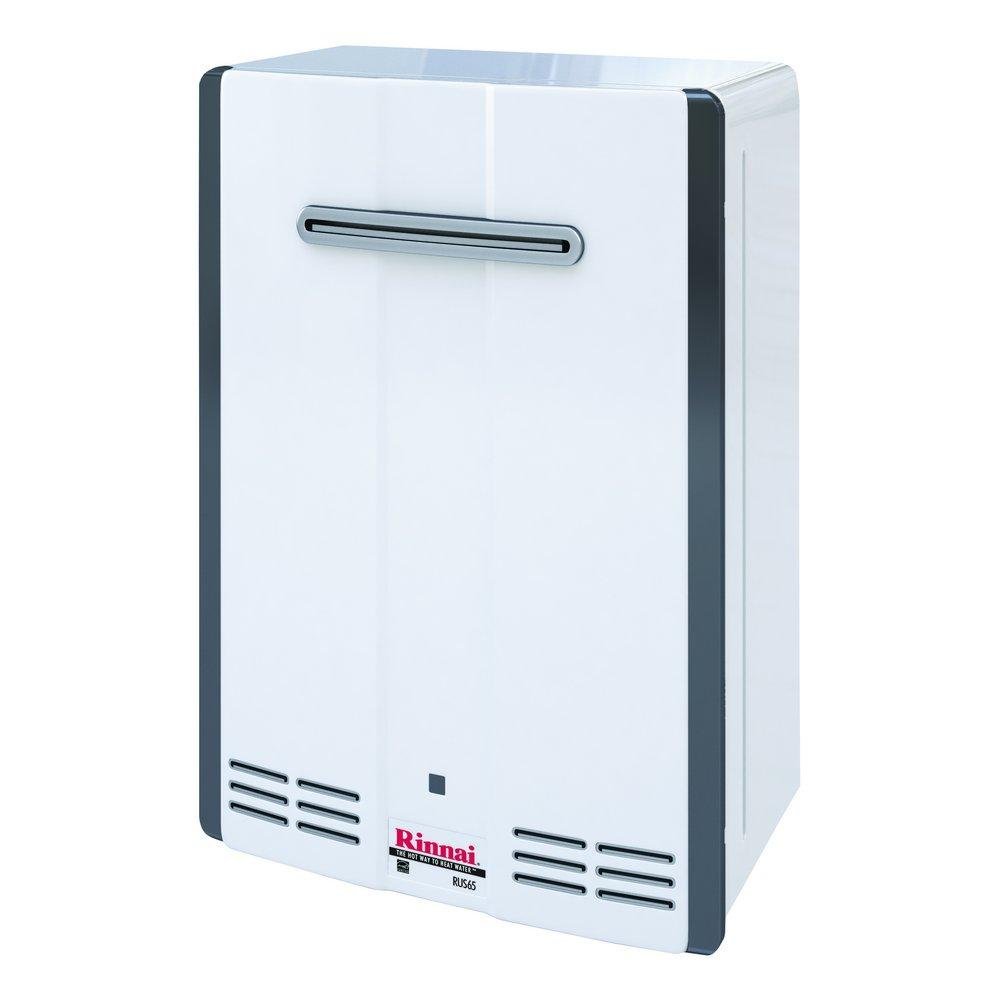

Rinnai RUS65EN Ultra Series Natural Gas 130000 BTU Tankless Water Heater

Product Description

The Rinnai RUS65EN from the Ultra Series delivers a combination of comfort and efficiency. This natural gas tankless water heater provides hot water on demand with a maximum input capacity of 130000 BTU. Designed for outdoor residential applications, it features a compact design and easy maintenance.

• Compact Design for discreet installation.
• Saves energy by only heating water when needed.
• Provides continuous, uninterrupted hot water.

Product Highlights

The Rinnai RUS65EN tankless water heater offers an efficient and space-saving solution for continuous hot water supply in residential settings.

Product Information

Standard Information

• Brand: RINNAI
• Manufacturer Part Number: RUS65EN
• Country of Origin: Japan

Technical Specifications

• Fuel Type: Natural Gas
• Type: Tankless Water Heater
• CSA Listed: Yes
• Frequency: 60 Hz
• Product Category: Water Heater – Tankless
• Medium: Hot Water
• Cold Water Inlet: 3/4 Inch
• Hot Water Outlet: 3/4 Inch
• NSF Certified: Yes
• AHRI Certified: Yes
• Vent Type: Outdoor (No Venting)
• Minimum Flow Rate: 0.4 GPM
• Gas Connection Size: 3/4 Inch
• Mount Type: Wall
• Application: Residential
• Product Line: Ultra Series
• Storage Type: Tankless
• Includes Pump: No
• Uniform Energy Factor: 0.90
• Maximum Input Capacity: 130000 BTU
• Minimum Input Capacity: 10300 BTU
• Combustion Type: Condensing
• Ultra Low NOx Emissions: Yes
• Parts Warranty: 5 Years
• AHRI Reference Number: 8203412
• Gas Conversion Kit: Not Available
• Installation Location: Outdoor
• Heat Exchanger Warranty: 12 Years
• Flow Rate at 40F Temperature Rise: 6.0 GPM
• Flow Rate at 45F Temperature Rise: 5.2 GPM
• Flow Rate at 50F Temperature Rise: 4.8 GPM
• Flow Rate at 60F Temperature Rise: 4.0 GPM
• Flow Rate at 70F Temperature Rise: 3.4 GPM
• Phase: 1
• Voltage: 120 Volts
• Maximum Flow Rate: 6.5 Gallons Per Minute
• Applicable Standard: ANSI Z21.10.3, CSA 4.3, AHRI
• Electrical Input Supply Rating: 120 Volt AC at 60 Hertz, 12 Volt DC, 2.3 Amp, 61 Watt
• Gas Input Supply Rating: 10300 to 130000 BTU/Hour
• Ignition Type: Direct Electronic
• Inlet/Outlet Connection: 3/4 Inch Threaded x 3/4 Inch Threaded
• Temperature Rating: 120 to 140 Deg F
• Energy Factor: 0.93
• Flow Range (GPM): 0.26 – 6.5
• Energy Star Rated: Yes
• Temperature Range (F): 120°F to 140°F
• Cold Water Inlet (NPTM): 3/4″
• Hot Water Outlet (NPTF): 3/4″
